How To Make Object Detection System using Ultrasonic sensor

Here’s an Arduino program that uses an ultrasonic sensor (HC-SR04) and a buzzer. When the ultrasonic sensor detects an object within a certain distance, the buzzer will sound to indicate "Object Detected."

Components:

• HC-SR04 Ultrasonic Sensor
• Buzzer
• Arduino Uno
• Jumper wires

Circuit:

• HC-SR04 Ultrasonic Sensor:
  • VCC to 5V
  • GND to GND
  • Trig to Pin 9
  • Echo to Pin 10
• Buzzer:
  • Positive pin to Pin 3
  • Negative pin to GND

Video Link: - Click Here For Video

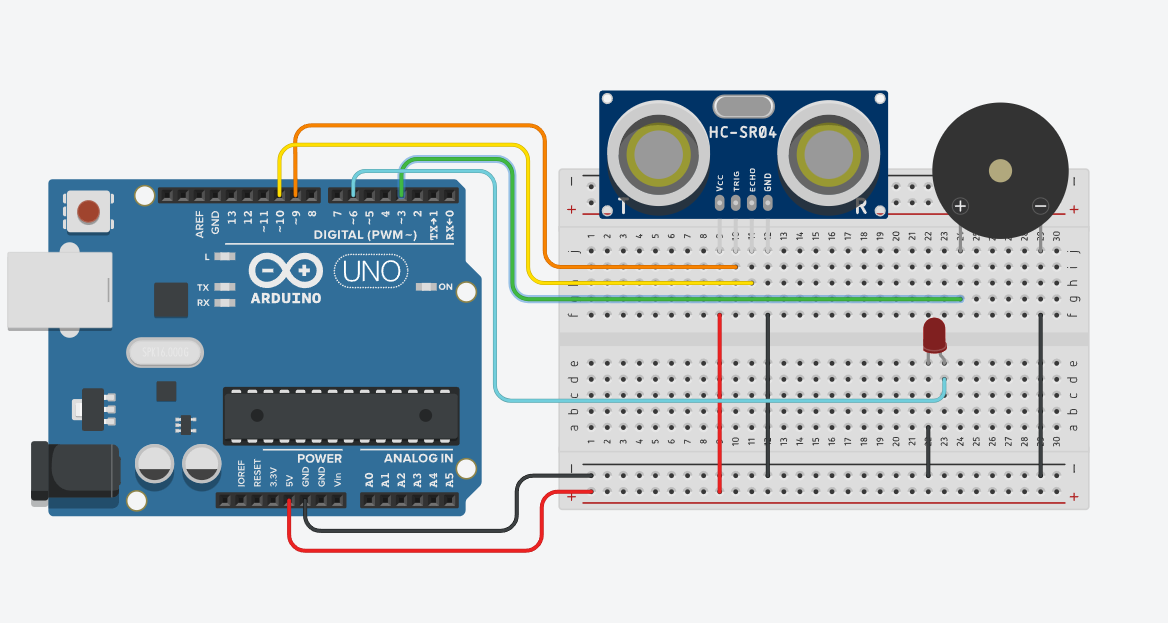

How To Make Object Detection System using Ultrasonic sensor simple Circuit: -

LNFaqu6j2nA

How To Make Object Detection System using Ultrasonic sensor Arduino Programming: -

Arduino IDE Program

// Define pins for the ultrasonic sensor and buzzer

#define TRIG_PIN 9

#define ECHO_PIN 10

#define BUZZER_PIN 3

#define LED 6

// Define a distance threshold (in cm) for object detection

#define DISTANCE_THRESHOLD 15

void setup() {

  // Initialize the serial monitor

  Serial.begin(9600);



  // Set the pin modes

  pinMode(TRIG_PIN, OUTPUT);

  pinMode(ECHO_PIN, INPUT);

  pinMode(BUZZER_PIN, OUTPUT);

  pinMode(LED, OUTPUT);

}

void loop() {

  // Trigger the ultrasonic sensor

  digitalWrite(TRIG_PIN, LOW);

  delayMicroseconds(2);

  digitalWrite(TRIG_PIN, HIGH);

  delayMicroseconds(10);

  digitalWrite(TRIG_PIN, LOW);



  // Read the echo time

  long duration = pulseIn(ECHO_PIN, HIGH);



  // Calculate distance (in cm)

  float distanceCm = (duration * 0.0343) / 2;



  // Print the distance to the serial monitor

  Serial.print("Distance: ");

  Serial.print(distanceCm);

  Serial.println(" cm");



  // Check if the distance is below the threshold

  if (distanceCm <= DISTANCE_THRESHOLD) {

    // Object detected, activate buzzer

    digitalWrite(BUZZER_PIN, HIGH);

    digitalWrite(LED,HIGH);

    Serial.println("Object Detected!");

  } else {

    // No object, turn off buzzer

    digitalWrite(BUZZER_PIN, LOW);

    digitalWrite(LED,LOW);

  }



  // Small delay before the next reading

  delay(500);

}

-----------------------------------------------------------------------------------------------------------------------------

Explanation:

• The ultrasonic sensor measures the distance to an object.
• If the object is within 20 cm (or any set threshold), the buzzer will sound.
• You can adjust the DISTANCE_THRESHOLD to change the detection range.

Circuit Simulation:

You can use Tinkercad to simulate this project by adding the ultrasonic sensor, buzzer, and Arduino. Run the simulation to check how it works! Let me know if you need more details or help setting up.
